Inside the Littmann Cardiology IV Stethoscope

Q: What's the difference between the Cardiology IV and the Classic III?

Cardiology IV ~40× greater acoustic sensitivity · Dual-lumen tubing · Tunable diaphragms on both sides · Enhanced low-frequency response · High-acuity & specialty use Classic III Single-lumen tubing · Standard sensitivity · Suitable for general physical examination

Q: Can I use the Cardiology IV for both adult and pediatric patients?

Yes . The dual-sided chestpiece provides an adult diaphragm on one side and a pediatric diaphragm on the other. Both sides feature tunable diaphragm technology, maintaining full frequency range capability on either side. The smaller pediatric side also works well for auscultation in supraclavicular areas, axillae, or other anatomically challenging locations on adult patients.

Q: How do I adjust between bell and diaphragm modes with the tunable diaphragm?

Light Pressure Diaphragm moves freely — functions as a bell for low-frequency sounds (S3, S4, mitral stenosis murmurs) Firm Pressure Diaphragm movement restricted — emphasizes high-frequency sounds (breath sounds, systolic murmurs) No physical mode switch — the diaphragm responds entirely to pressure changes. Becomes second nature with minimal practice.

Q: How often should I replace the diaphragm and eartips?

Diaphragm Replace when cracks, stiffness, or physical damage appear. With normal use, diaphragms typically last several years. Eartips Replace when elasticity is lost, cracks develop, or comfort deteriorates. Many clinicians replace annually as preventive maintenance.

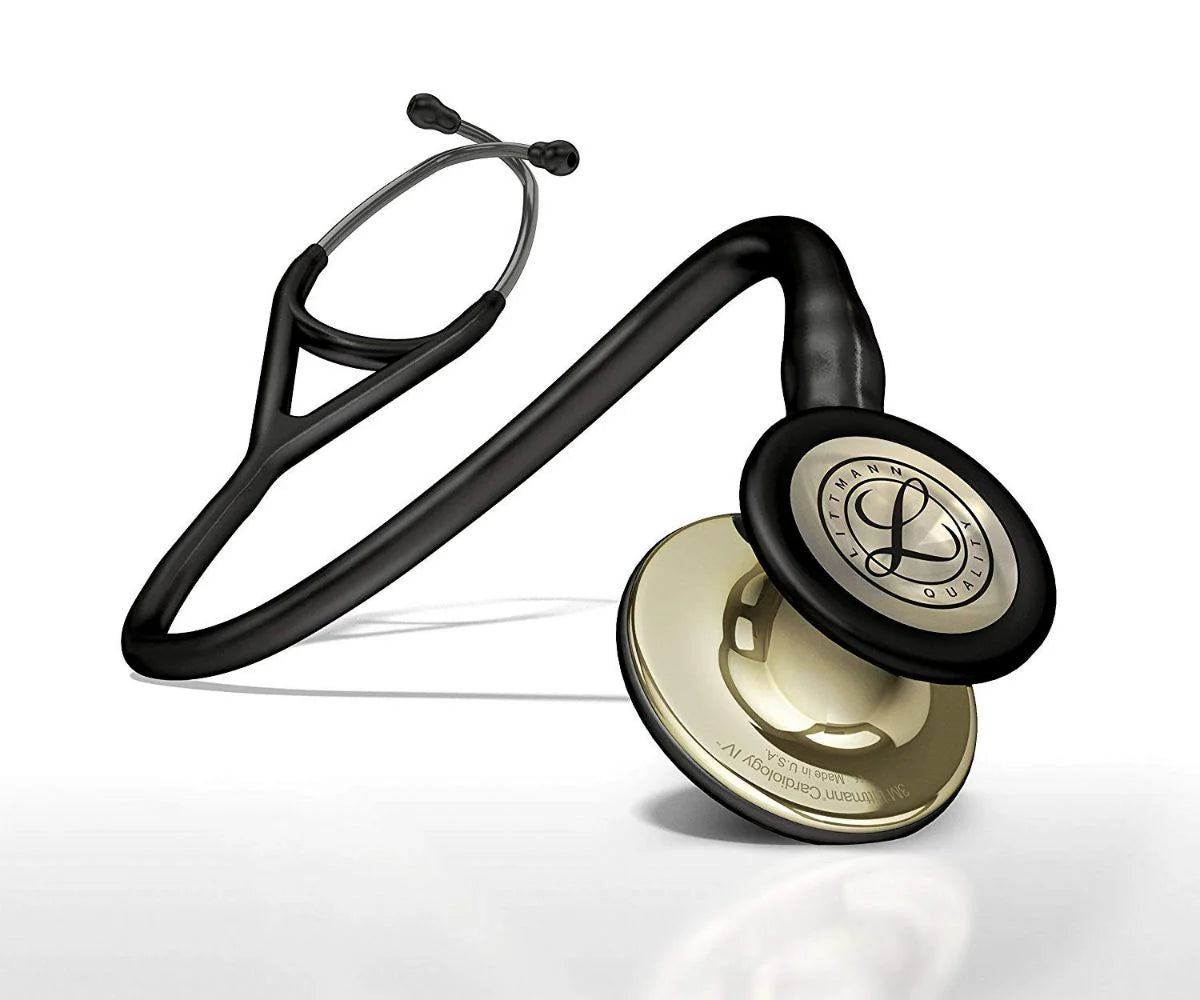

Chestpiece, Tubing, & Acoustic Technology Explained

The 3M Littmann Cardiology IV stands apart in the world of diagnostic stethoscopes, not through marketing claims, but through deliberate engineering decisions that directly impact what clinicians hear. From its chalice-shaped chestpiece to its dual-lumen tubing architecture, every component serves a measurable acoustic purpose.

This guide breaks down the technologies that make the Cardiology IV a reference standard in cardiology, emergency medicine, and critical care settings worldwide.

What Makes the Cardiology IV Such a High-Performance Stethoscope?

True auscultation performance requires chestpiece design, tubing, and acoustic pathways working in concert. The Cardiology IV tackles three core challenges, frequency range, acoustic interference, and sound attenuation, delivering sensitivity approximately 40 times greater than standard stethoscopes.

The result: clinicians detect faint murmurs, S3/S4 heart sounds, Grade I murmurs, and early lung sounds with greater confidence — findings that directly shape diagnostic and treatment decisions. It's why cardiologists, intensivists, and respiratory specialists consistently reach for this model in demanding environments.

Ergonomic Headset & Snap-Tight Soft-Sealing Eartips

The anatomically angled binaurals and snap-tight, soft-sealing eartips create an optimal acoustic seal, maximizing sound transmission while blocking ambient noise. Adjustable headset tension and durable, elastic eartip material ensure a comfortable, consistent fit across extended use and varying ear canal anatomies.

Dual-Lumen Tubing: Two Sound Paths, Zero Interference

Its dual-lumen tubing maintains complete acoustic separation from chestpiece to binaurals — preserving the full frequency range, reducing tube noise, and shielding against environmental interference. The latex-free, phthalate-free proprietary compound resists oils, sanitizers, and temperature fluctuations, ensuring lasting flexibility and consistent performance over years of heavy use.

Frequently Asked Questions

What's the difference between the Cardiology IV and the Classic III?

Cardiology IV

~40× greater acoustic sensitivity · Dual-lumen tubing · Tunable diaphragms on both sides · Enhanced low-frequency response · High-acuity & specialty use

Classic III

Single-lumen tubing · Standard sensitivity · Suitable for general physical examination

Can I use the Cardiology IV for both adult and pediatric patients?

Yes. The dual-sided chestpiece provides an adult diaphragm on one side and a pediatric diaphragm on the other. Both sides feature tunable diaphragm technology, maintaining full frequency range capability on either side. The smaller pediatric side also works well for auscultation in supraclavicular areas, axillae, or other anatomically challenging locations on adult patients.

How do I adjust between bell and diaphragm modes with the tunable diaphragm?

Light Pressure
Diaphragm moves freely — functions as a bell for low-frequency sounds (S3, S4, mitral stenosis murmurs)

Firm Pressure
Diaphragm movement restricted — emphasizes high-frequency sounds (breath sounds, systolic murmurs)

No physical mode switch — the diaphragm responds entirely to pressure changes. Becomes second nature with minimal practice.

How often should I replace the diaphragm and eartips?

Diaphragm
Replace when cracks, stiffness, or physical damage appear. With normal use, diaphragms typically last several years.

Eartips
Replace when elasticity is lost, cracks develop, or comfort deteriorates. Many clinicians replace annually as preventive maintenance.

Is the Cardiology IV compatible with all sanitization methods?

✓ Compatible

Alcohol wipes
Bleach solutions
Quaternary ammonium disinfectants

✗ Avoid

Immersion in liquid
Autoclave sterilization
Excessive heat or moisture

Consult the manufacturer's cleaning guidelines for specific product recommendations.

Does the dual-lumen tubing make the stethoscope stiffer or harder to manage?

No. The dual-lumen design balances well in practice. The outer protective jacket contains both lumens and provides structure while maintaining flexibility. Most clinicians find the tubing drapes comfortably around the neck without the stiffness associated with older dual-tube designs. The tubing material is specifically formulated for clinical usability.

What is the warranty period, and what does it cover?

✓ Covered — 7-Year Warranty

Chestpiece
Tubing
Headset
Internal components
Defects in materials & workmanship

✗ Not Covered

Misuse or accidental damage
Normal wear on eartips
Consumable parts

Register your stethoscope through Littmann's website to document your purchase date and facilitate warranty service if needed.
